I know some guys have asked about installing springs. The instrutions on Steeda's website are a pretty good but I wanted to give more visual aids. I didn't find anything on how to replace the rear shocks either so I went ahead and took some pics of those too. It was pretty easy once I figured out and saw what had to come off.
So here you guys go. How to install springs and swap out the rear shocks.

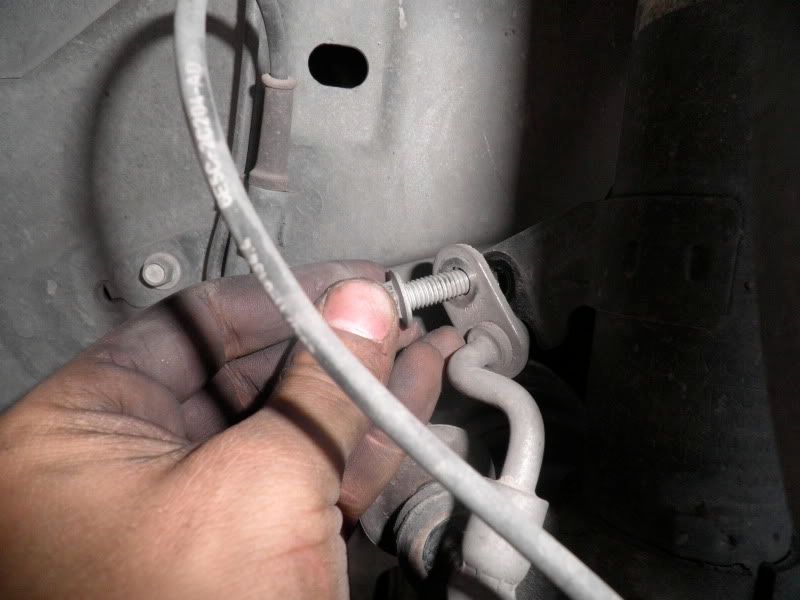

Start by taking off the bolt that holds the brake line.

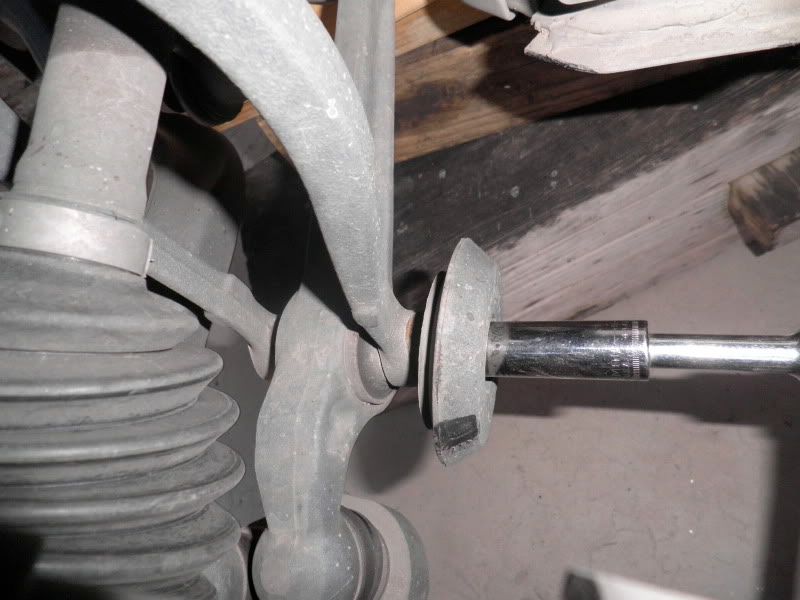

Next take off the "wishbone" by taking off the two bolts. One at the top and one on bottom.

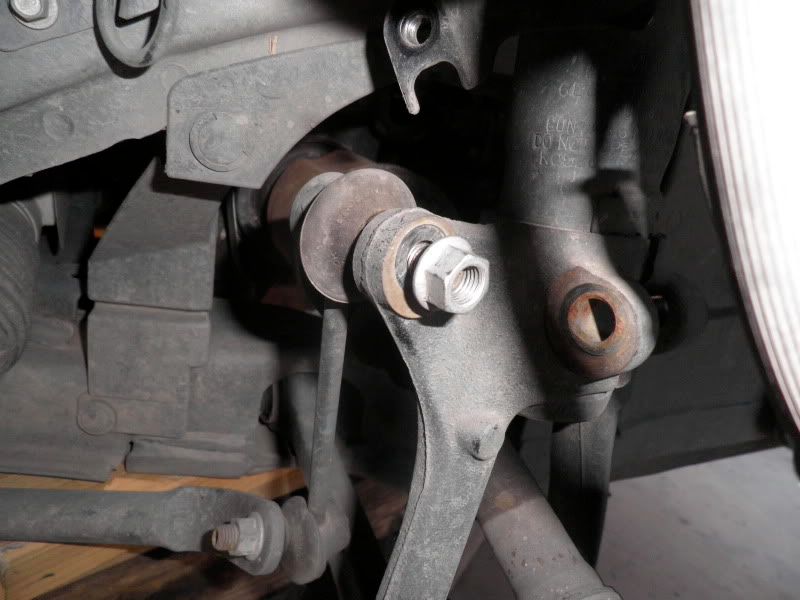

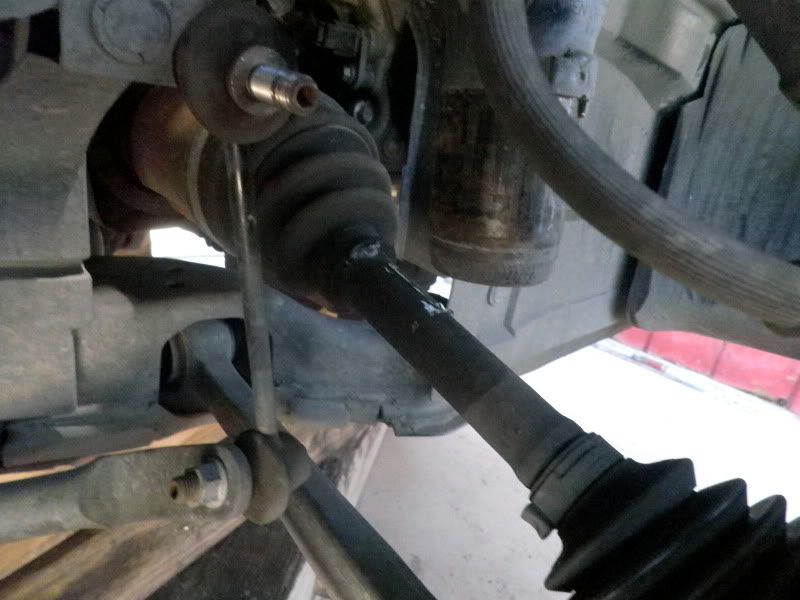

Now take off the nut that connects the link bar to the wishbone and remove the link bar.


Once disconnected remove the wishbone.

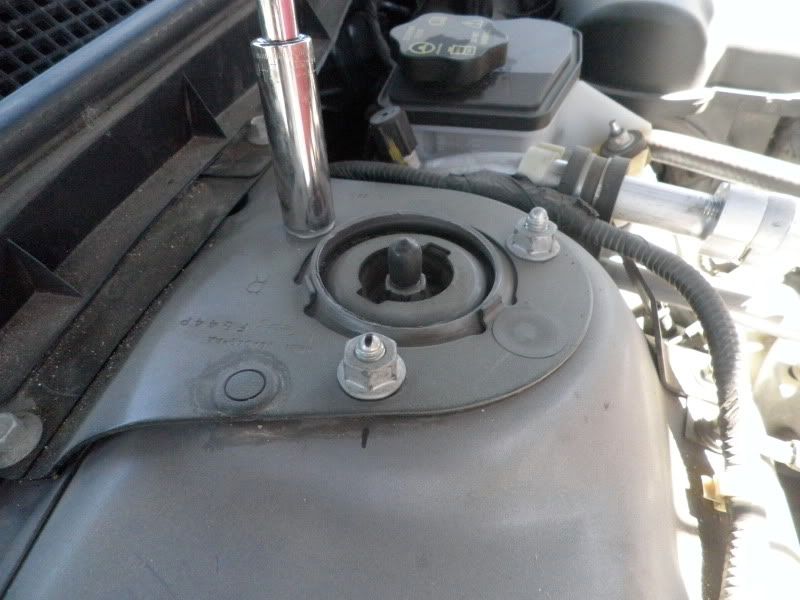

Now go to the engine bay and remove the three nuts on the strut tower.
It's a good idea to mark one of the bolts to the tower so you know which way it goes.
Hold on to the strut when removing the last nut. It will drop. Go ahead and remove it


BE CAREFUL IN THE FOLLOWING STEPS. COMPRESSING SPRINGS IS DANGEROUS AND SHOULD BE DONE CAREFULLY.
Now that its off use the spring clamps to compress the springs. You can rent a set at Autozone for around $50 which they will refund you back once you return them.


Once compressed take off the nut on top of the strut and the strut should come off. The bolt shown in the pic helped so the assembly wouldn't rotate when loosening the nut. If you're using an impact wrench you won't need it. The bolt is metric, 5 or 6 mm.
Slowly decompress (is that a word?) the clamps.

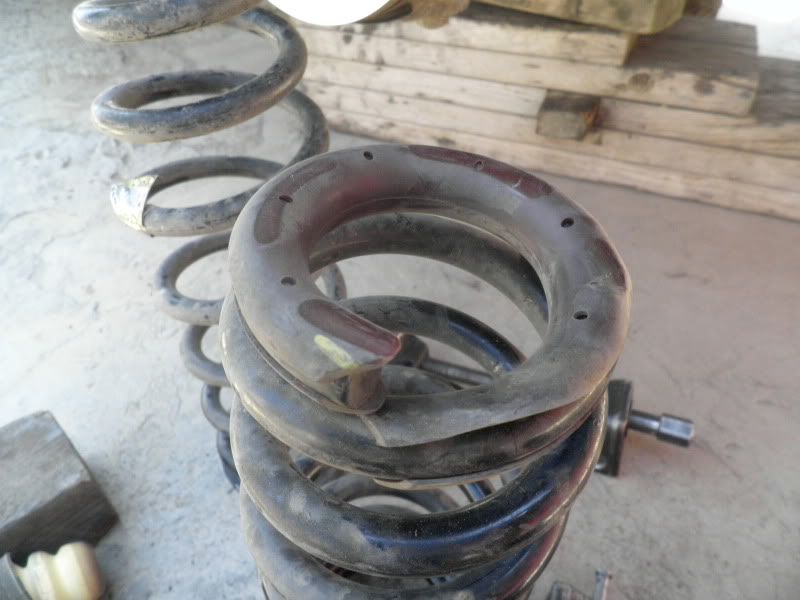

Make sure you don't forget to install the dampner from the OEM spring onto the new one.


To install just reverse the steps.
Now give yourself a pat on the back. You just finished installing the front springs.

On to the rear.

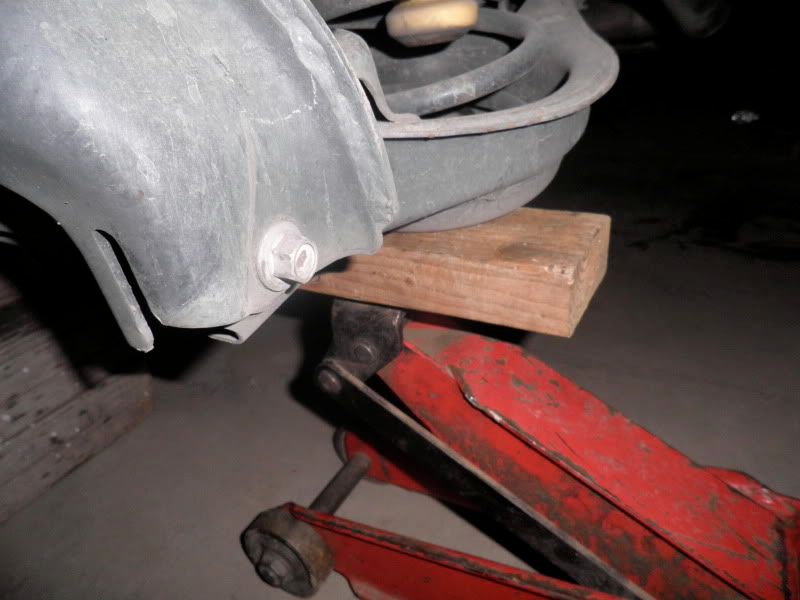

Start by placing your jack under the spring and jack it up to support it.

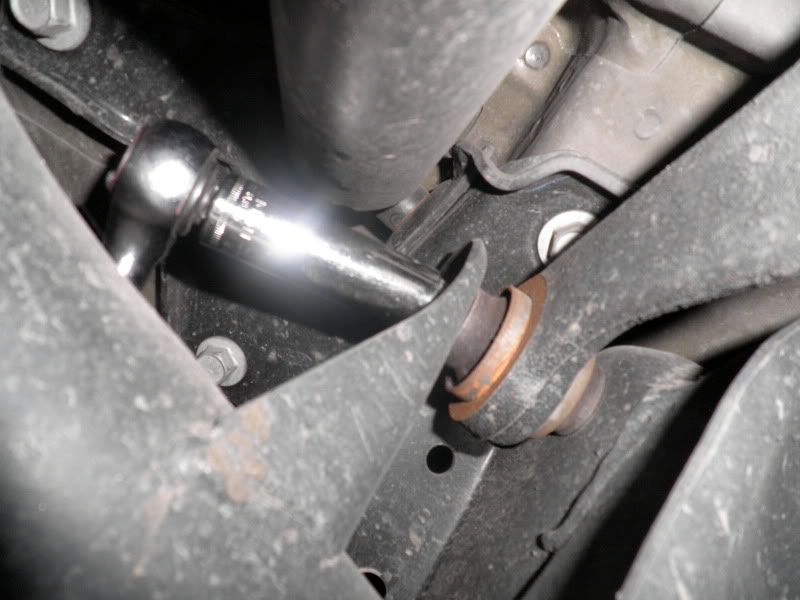

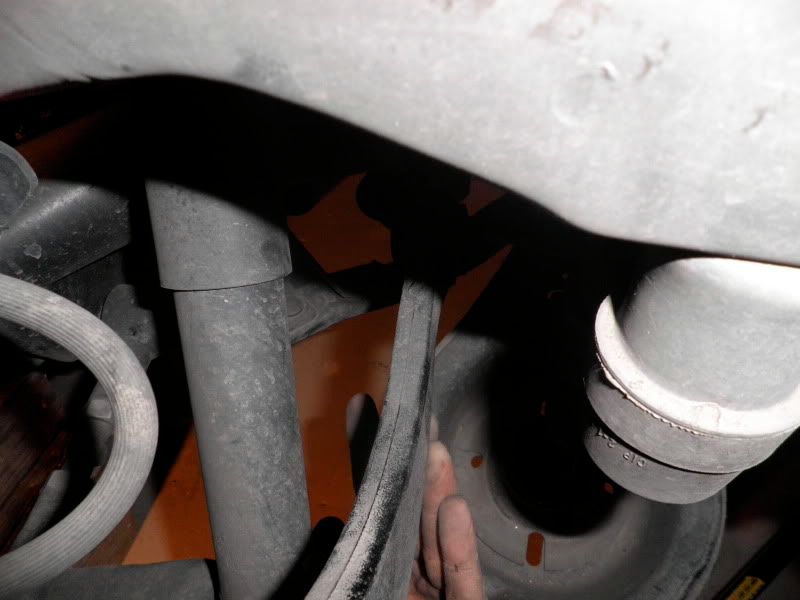

Remove the bolt that links to the sway bar.

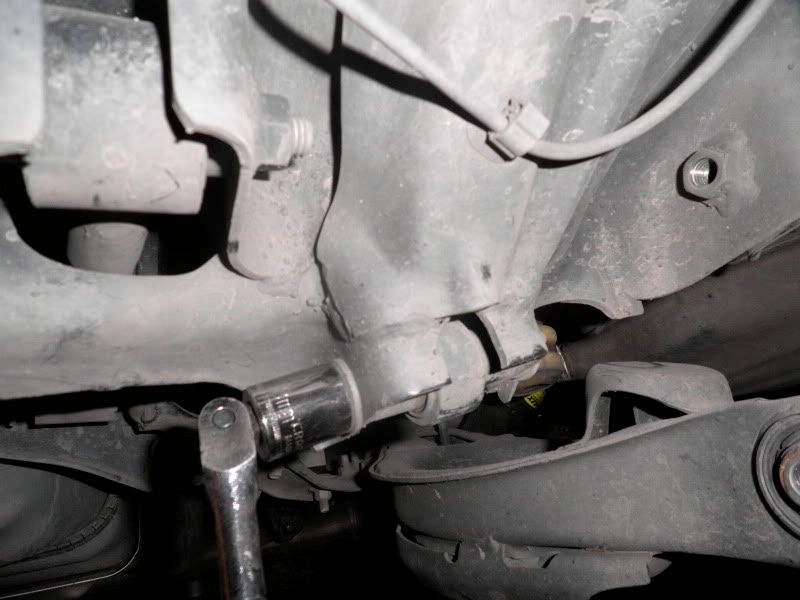

Now remove the bolt on the front side (closest to you)


Slowly lower the jack and get it out of the way.
The spring will easily come out. Edit: Mine came out easily because I already had lowering springs. When I did my sister's I found that OEM springs will require a little bit more effort. Use a pry bar to help remove it.


Now reverse the steps to install.


If you are replacing the rear shocks leave the springs off so they don't get in the way.

Start by loosening the bolt behind the top side of the rotor. No need to take it off.

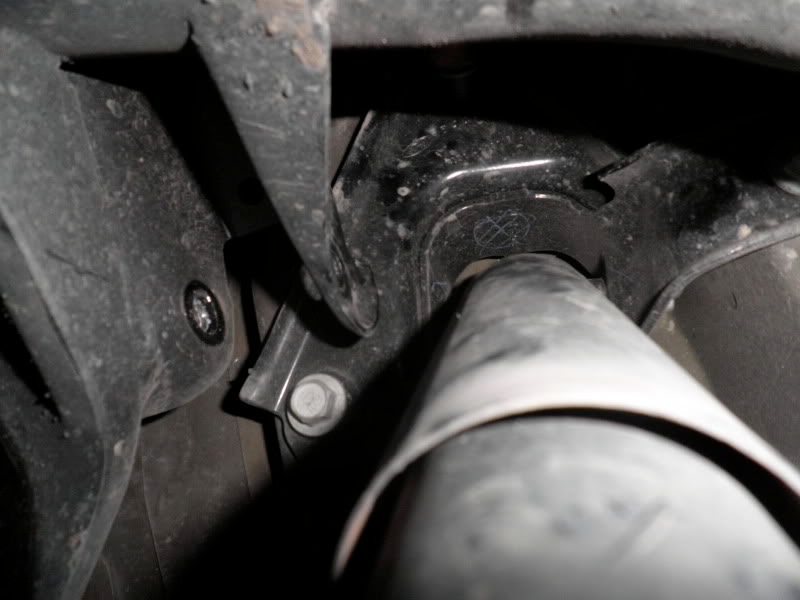

Now follow that part and remove the bolt on the opposite end. (It's right next to the top side of the shock)


Once the bolt is out, swing the part down so it's out of the way.


Now go to the top side of the shock and you will see a bracket with 3 bolts.
Go ahead and remove them.

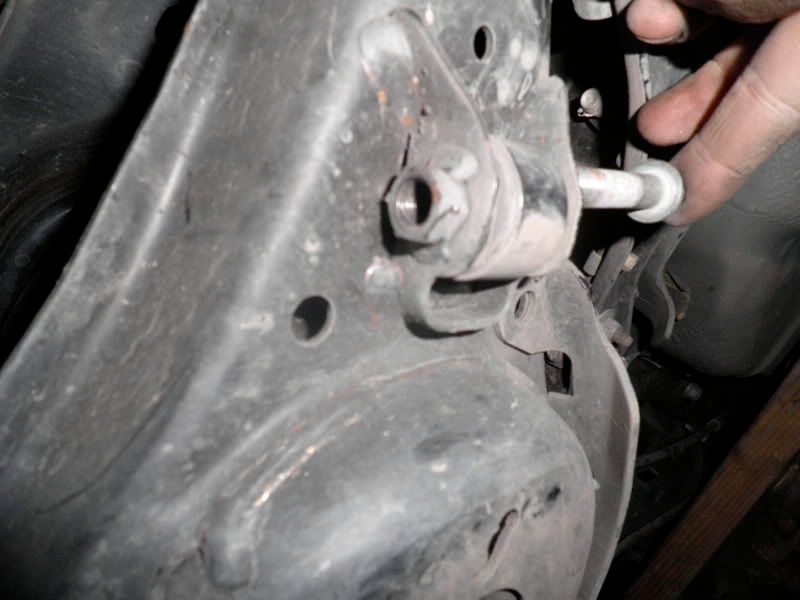

Now go to th bottom of the shock and remove that bolt.
The shock should now drop. You might have to play with it a little to maneuver out .

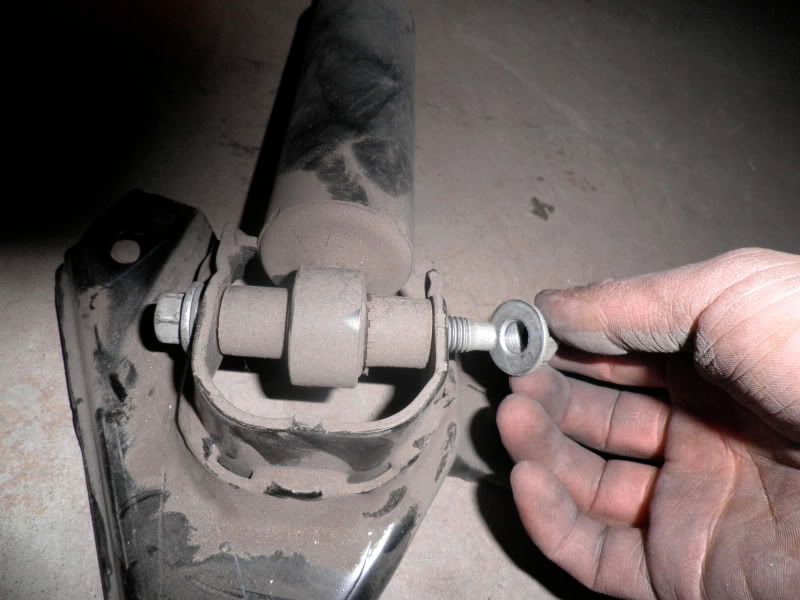

Once out remove the bolt from the shock and bracket. Replace the shock and reverse the steps.


Congrats, go have a beer and enjoy the new ride.


·
